HQ400-1200B CNC Copper Busbar Bending Machine
Description:
LT HQ400-1200B busbar machine is an automatic CNC busbar bending machine, used for bending copper and aluminum busbars.
HQ400-1200B busbar bending machine adopts advanced CNC numerical control system and CAD/CAM system.
The busbar bending processing has the remarkable characteristics of high precision, high efficiency and automation.
To learn about the latest busbar bending machine prices and obtain related technical materials, contact us now.
LT Busbar Bending Machine Videos:
Infomation:
HQ400-1200B CNC busbar bending machine Specifications
| Model | HQ400-1200B |
| Nomianl Pressure | 400KN |
| Hydraulic Cylinder Stroke | 250mm |
| Main Motor Power | 5.5kw |
| Gauge Length | 1200mm |
| Gauge Accuracy | +/-0.15 |
| Bending Accuracy | +/-0.3° |
| Bending Head(Y Axis) | Fastest 5m/min; low: 1.25m/min |
| Max Moting Speed of Side striker(X Axis) | 15m/min |
| Y-axis Repeat Positioning Accuracy | +/-0.02 |
| Horizontal Bending Max.Size | 15mm x 160mm |
| Vertical Bending Max.Size | 12mm x 120mm |
| Y-axis Servo Motor Power | 5.5kw |
| X-axis Servo Motor Power | 0.75kw |
| Weight | 3100kg |
| Size | 3500mm x 1450mm x 1850mm |
Feature:

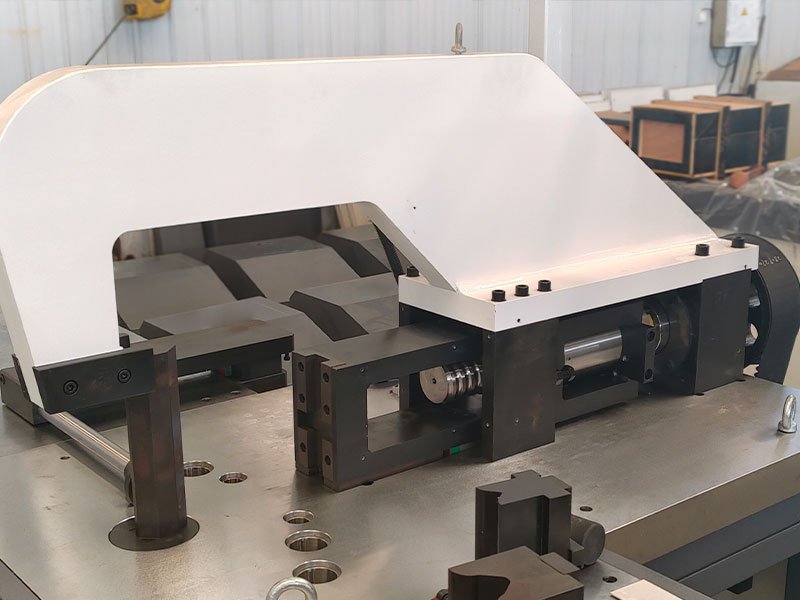

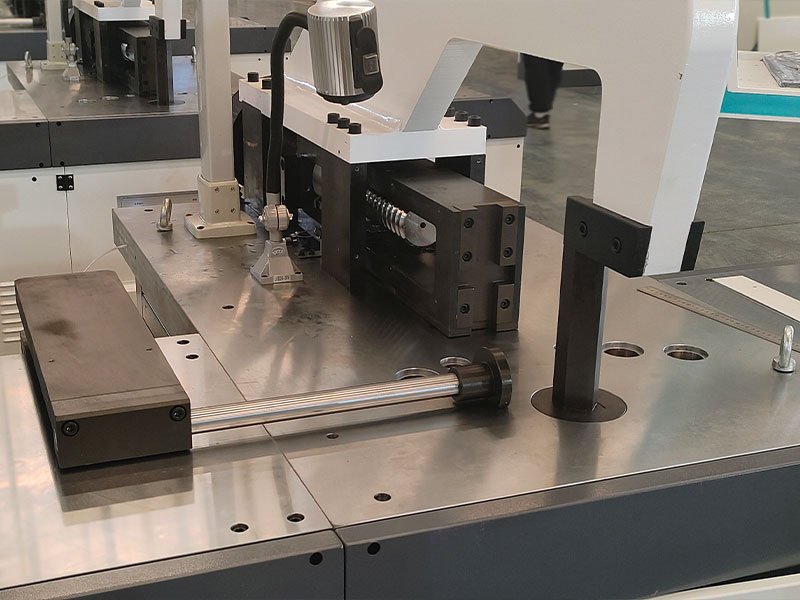

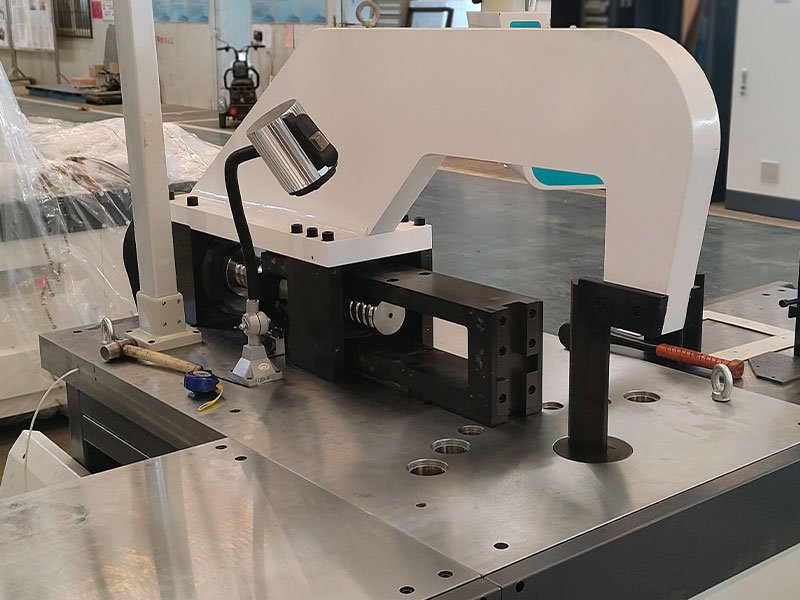

Closed bending structure .
The LT busbar bending machine structure is simple, the force is uniform, and the mechanical strength is greatly enhanced compared with open bending.

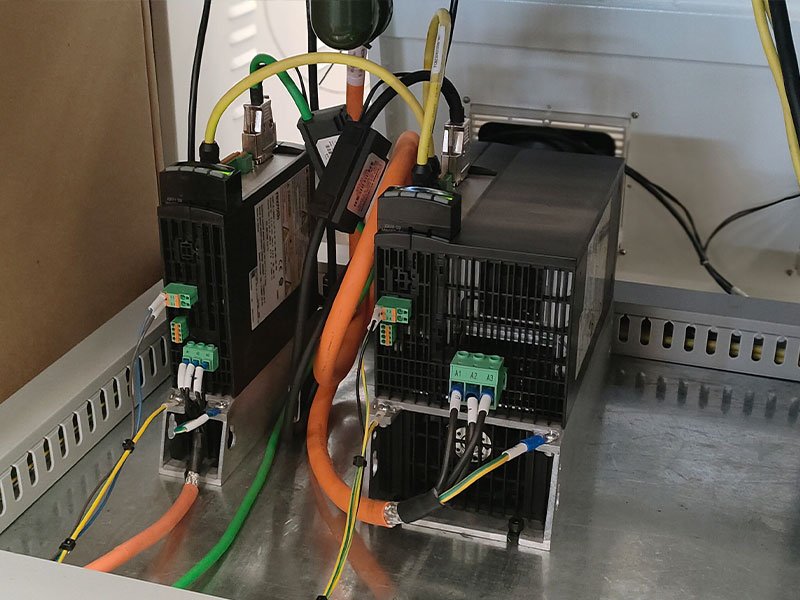

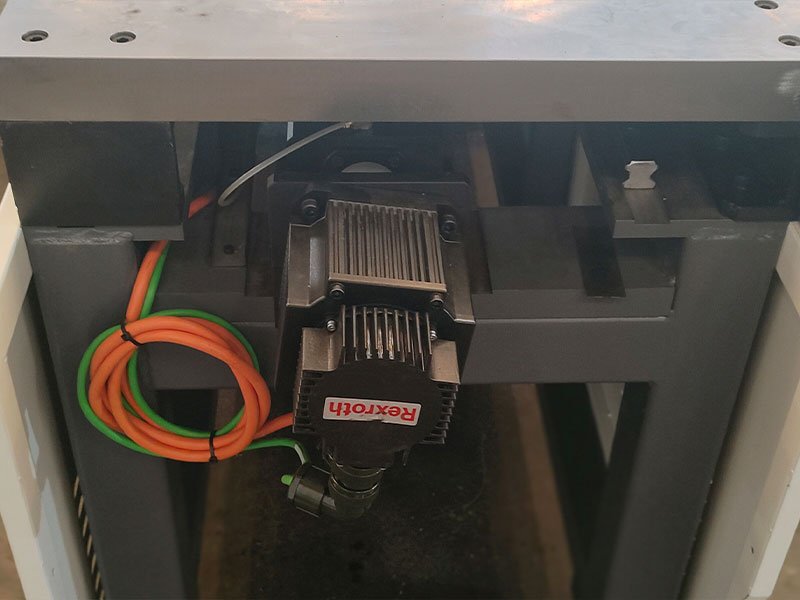

Servo motor as main power
The transmission is stable, the repeat positioning accuracy is high, the accuracy is not affected by temperature, and it is more stable.

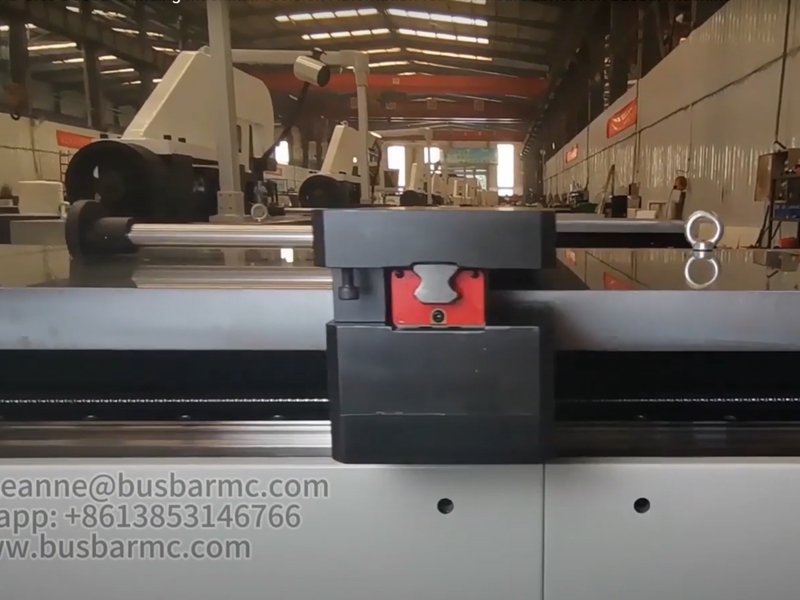

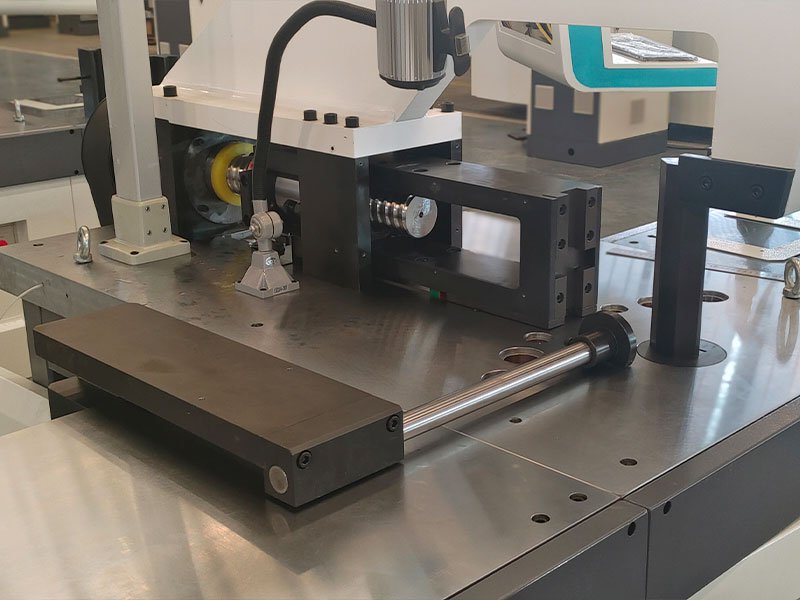

CNC stopper.
Modular design, length can be customized, smooth operation.

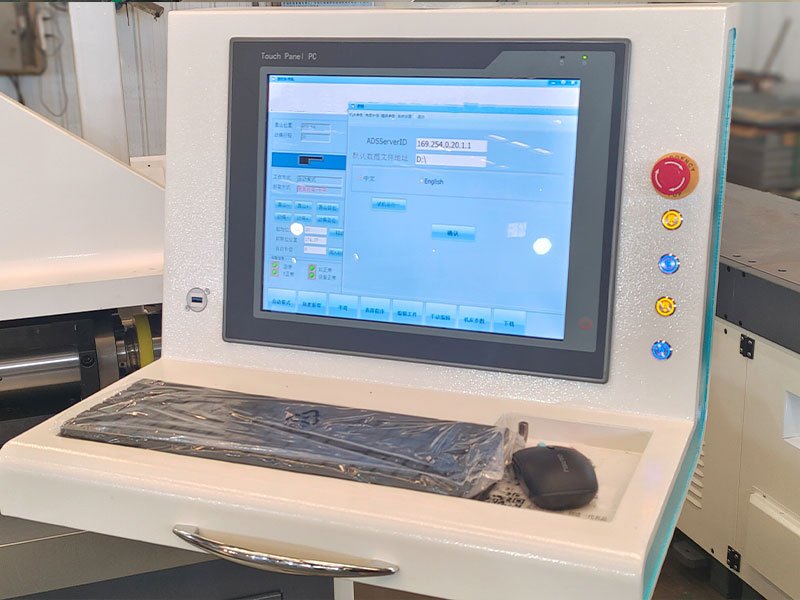

CNC Control Unit + CAD/CMD Software System.
CNC is the control unit, coupled with CAD/CMD software system for busbar bending machine, it is an ideal processing equipment for high and low voltage complete sets, box-type substations, transformers and other industries.
FAQ – HQ400-1200B CNC Copper Busbar Bending Machine
1. What materials can the HQ400-1200B busbar bending machine process?
The machine is designed for bending copper and aluminum busbars within the specified size range.
2. What is the maximum bending capacity of this machine?
The maximum horizontal bending size is 15mm × 160mm, and the maximum vertical bending size is 12mm × 120mm.
3. What type of power system does the machine use?
The HQ400-1200B uses a servo motor as the main power source, ensuring stable transmission and high repeat positioning accuracy.
4. What is the gauge length and positioning accuracy?
The gauge length is 1200mm, with a gauge accuracy of ±0.15mm and a Y-axis repeat positioning accuracy of ±0.02mm.
5. What are the advantages of the closed bending structure?
The closed bending structure provides uniform force distribution, higher mechanical strength, and improved bending stability.
6. What CNC system does the machine use?
The machine adopts a CNC numerical control unit combined with CAD/CAM software for efficient programming and precise bending control.
7. What is the nominal pressure of the machine?
The HQ400-1200B busbar bending machine has a nominal pressure of 400KN.
8. How fast is the bending head (Y-axis)?
The Y-axis bending head moves at a maximum speed of 5m/min and a low-speed setting of 1.25m/min.
9. What is the moving speed of the side striker (X-axis)?
The maximum moving speed of the X-axis side striker is 15m/min.
10. Is the CNC stopper adjustable?
Yes. The CNC stopper uses a modular design, allowing length customization and smooth operation.
11. What industries can benefit from this machine?
It is suitable for high and low voltage switchgear manufacturing, electrical panels, transformer plants, and box-type substation production.
12. What are the machine dimensions and weight?
The machine size is 3500mm × 1450mm × 1850mm, and the weight is approximately 3100kg.
13. How can I get the latest price and technical details?
You can contact our technical support or sales team to receive the latest pricing and detailed product documentation.
